The Atlantic Monthly, Volume 12, No. 74, December, 1863

Beside the snow-layers and the sheets of dust alternating with them, there is still another feature of the horizontal and parallel structure of the mass in immediate connection with those above considered. I allude to the layers of pure compact ice occurring at different intervals between the snow-layers. In July, when the snow of the preceding winter melts up to the line of perpetual snow, the masses above, which are to withstand the summer heat and become part of the glacier forever, or at least until they melt away at the lower end, begin to undergo the changes through which all snow passes before it acquires the character of glacial ice. It thaws at the surface, is rained upon, or condenses moisture, thus becoming gradually soaked, and after assuming the granular character of névé-ice, it ends in being transformed into pure compact ice. Toward the end of August, or early in September, when the nights are already very cold in the Alps, but prior to the first permanent autumnal snow-falls, the surface of these masses becomes frozen to a greater or less depth, varying, of course, according to temperature. These layers of ice become numerous and are parallel to each other, like the layers of ice formed from slosh. Such crusts of ice I have myself observed again and again upon the glacier. This stratified snowy ice is now the bottom on which the first autumnal snow-falls accumulate. These sheets of ice may be formed not only annually before the winter snows set in, but may recur at intervals whenever water accumulating upon an extensive snow-surface, either in consequence of melting or of rain, is frozen under a sharp frost before another deposit of snow takes place. Or suppose a fresh layer of light porous snow to have accumulated above one the surface of which has already been slightly glazed with frost; rain or dew, falling upon the upper one, will easily penetrate it; but when it reaches the lower one, it will be stopped by the film of ice already formed, and under a sufficiently low temperature, it will be frozen between the two. This result may be frequently noticed in winter, on the plains, where sudden changes of temperature take place.

There is still a third cause, to which the same result may possibly be due, and to which I shall refer at greater length hereafter; but as it has not, like the preceding ones, been the subject of direct observation, it must be considered as hypothetical. The admirable experiments of Dr. Tyndall have shown that water may be generated in ice by pressure, and it is therefore possible that at a lower depth in the glacier, where the incumbent weight of the mass above is sufficient to produce water, the water thus accumulated may be frozen into ice-layers. But this depends so much upon the internal temperature of the glacier, about which we know little beyond a comparatively superficial depth, that it cannot at present afford a sound basis even for conjecture.

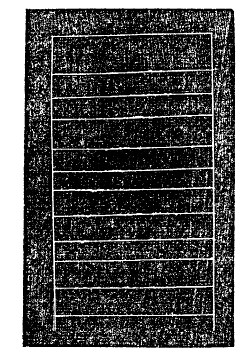

There are, then, in the upper snow-fields three kinds of horizontal deposits: the beds of snow, the sheets of dust, and the layers of ice, alternating with each other. If, now, there were no modifying circumstances to change the outline and surface of the glacier,—if it moved on uninterruptedly through an open valley, the lower layers, forming the mass, getting by degrees the advance of the upper ones, our problem would be simple enough. We should then have a longitudinal mass of snow, inclosed between rocky walls, its surface crossed by straight transverse lines marking the annual additions to the glacier, as in the adjoining figure.

But that mass of snow, before it reaches the outlet of the valley, is to be compressed, contorted, folded, rent in a thousand directions. The beds of snow, which in the upper ranges of the mountain were spread out over broad, open surfaces, are to be crowded into comparatively circumscribed valleys, to force and press themselves through narrow passes, alternately melting and freezing, till they pass from the condition of snow into that of ice, to undergo, in short, constant transformations, by which the primitive stratification will be extensively modified. In the first place, the more rapid motion of the centre of the glacier, as compared with the margins, will draw the lines of stratification downward toward the middle faster than at the sides. Accurate measurements have shown that the axis of a glacier may move ten- or twenty-fold more rapidly than its margins. This is not the place to introduce a detailed account of the experiments made to ascertain this result; but I would refer those who are interested in the matter to the measurements given in my "Système Glaciaire," where it will be seen that the middle may move at a rate of two hundred feet a year, while the margins may not advance more than ten or fifteen or twenty feet. These observations of mine have the advantage over those of other observers, that, while they embrace the whole extent of the glacier, transversely as well as in its length, they cover a period of several successive years, instead of being limited to summer campaigns and a few winter observations. The consequence of this mode of progressing will be that the straight lines drawn transversely across the surface of the glacier above will be gradually changed to curved ones below. After a few years, such a line will appear on the surface of the glacier like a crescent, with the bow turned downward, within which, above, are other crescents, less and less sharply arched up to the last year's line, which may be again straight across the snow-field. (See the subjoined figure, which represents a part of the glacier of the Lauter-Aar.)

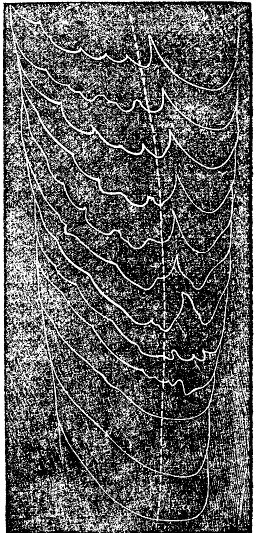

Thus the glacier records upon its surface its annual growth and progress, and registers also the inequality in the rate of advance between the axis and the sides.

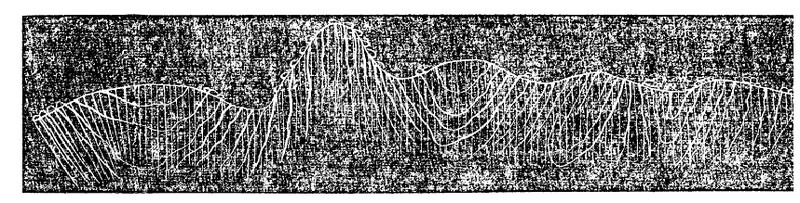

But these are only surface-phenomena. Let us see what will be the effect upon the internal structure. We must not forget, in considering the changes taking place within glaciers, the shape of the valleys which contain them. A glacier lies in a deep trough, and the tendency of the mass will be to sink toward its deeper part, and to fold inward and downward, if subjected to a strong lateral pressure,—that is, to dip toward the centre and slope upward along the sides, following the scoop of the trough. If, now, we examine the face of a transverse cut in the glacier, we find it traversed by a number of lines, vertical in some places, more or less oblique in others, and frequently these lines are joined together at the lower ends, forming loops, some of which are close and vertical, while others are quite open. These lines are due to the folding of the strata in consequence of the lateral pressure they are subjected to, when crowded into the lower course of the valleys, and the difference in their dip is due to the greater or less force of that pressure. The wood-cut on the next page represents a transverse cut across the Lauter-Aar and the Finster-Aar, the two principal tributaries to the great Aar glacier, and includes also a number of small lateral glaciers which join them. The beds on the left, which dip least, and are only folded gently downward, forming very open loops, are those of the Lauter-Aar, where the lateral pressure is comparatively slight. Those which are almost vertical belong in part to the several small tributary glaciers, which have been crowded together and very strongly compressed, and partly to the Finster-Aar. The close uniform vertical lines in this wood-cut represent a different feature in the structure of the glacier, called blue bands, to which I shall refer presently. These loops or lines dipping into the internal mass of the glacier have been the subject of much discussion, and various theories have been recently proposed respecting them. I believe them to be caused, as I have said, by the snow-layers, originally deposited horizontally, but afterward folded into a more or less vertical position, in consequence of the lateral pressure brought to bear upon them. The sheets of dust and of ice alternating with the snow-strata are of course subjected to the same action, and are contorted, bent, and folded by the same lateral pressure.

Dr. Tyndall has advanced the view that the lines of apparent stratification, and especially the dirt-bands across the surface of the glacier, are due to ice-cascades: that is, the glacier, passing over a sharp angle, is cracked across transversely in consequence of the tension, and these rents, where the back of the glacier has been successively broken, when recompacted, cause the transverse lines, the dirt being collected in the furrow formed between the successive ridges. Unfortunately for his theory, the lines of stratification constantly occur in glaciers where no such ice-falls are found. His principal observations upon this subject were made on the Glacier du Géant, where the ice-cascade is very remarkable. The lines may perhaps be rendered more distinct on the Glacier du Géant by the cascade, and necessarily must be so, if the rents coincide with the limit at which the annual snow-line is nearly straight across the glacier. In the region of the Aar glacier, however, where my own investigations were made, all the tributaries entering into the larger glacier are ribbed across in this way, and most of them join the main trunk over uniform slopes, without the slightest cascade.

It must be remembered that these surface-phenomena of the glacier are not to be seen at all times, nor under all conditions. During the first year of my sojourn on the glacier of the Aar, I was not aware that the stratification of its tributaries was so universal as I afterward found it to be; the primitive lines of the strata are often so far erased that they are not perceptible, except under the most favorable circumstances. But when the glacier has been washed clean by rain, and the light strikes upon it in the right direction, these lines become perfectly distinct, where, under different conditions, they could not be discerned at all. After passing many summers on the same glacier, renewing my observations year after year over the same localities, I can confidently state that not only do the lines of stratification exist throughout the great glacier of the Aar, but in all its tributaries also. Of course, they are greatly modified in the lower part of the glacier by the intimate fusion of its tributaries, and by the circumstance that their movement, primarily independent, is merged in the movement of the main glacier embracing them all. We have seen that not only does the centre of a glacier move more rapidly than its sides, but that the deeper mass of the glacier also moves at a different rate from its more superficial portion. My own observations (for the details of which I would again refer the reader to my "Système Glaciaire ") show that in the higher part of the glacier, especially in the region of the névé, the bottom of the mass seems to move more rapidly than the surface, while lower down, toward the terminus of the glacier, the surface, on the contrary, moves faster than the bottom. The annexed wood-cut exhibits a longitudinal section of the glacier, in which this difference in the motion of the upper and lower portions of the mass is represented, the beds being almost horizontal in the upper snow-fields, while their lower portion slopes move rapidly downward in the névé region, and toward the lower end the upper portion takes the lead, and advances more rapidly than the lower.

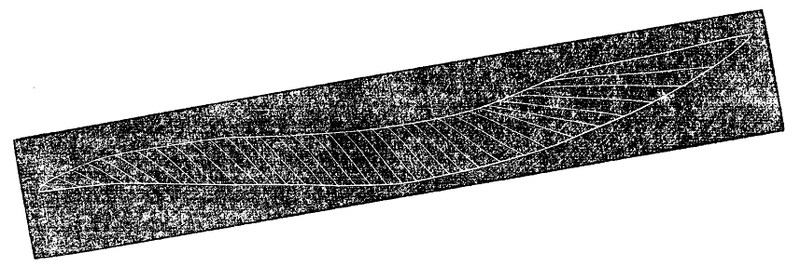

I presented these results for the first time in two letters, dated October 9th, 1842, which were published in a German periodical, the Jahrbuch of Leonhard and Bronn. The last three wood-cuts introduced above, the transverse and longitudinal sections of the glacier as well as that representing the concentric lines of stratification on the surface, are the identical ones contained in those communications. These papers seem to have been overlooked by contemporary investigators, and I may be permitted to translate here a passage from one of them, since it sums up the results of the inequality of motion throughout the glacier and its influence on the primitive stratification of the mass in as few words and as correctly as I could give them to-day, twenty years later:—"Combining these views, it appears that the glacier may be represented as composed of concentric shells which arise from the parallel strata of the upper region by the following process. The primitively regular strata advance into gradually narrower and deeper valleys, in consequence of which the margins are raised, while the middle is bent not only downward, but, from its more rapid motion, forward also, so that they assume a trough-like form in the interior of the mass. Lower down, the glacier is worn by the surrounding air, and assumes the peculiar form characteristic of its lower course." The last clause alludes to another series of facts, which we shall examine in a future article, when we shall see that the heat of the walls in the lower part of its course melts the sides of the glacier, so that, instead of following the trough-like shape of the valley, it becomes convex, arching upward in the centre and sinking at the margins.

I have dwelt thus long, and perhaps my readers may think tediously, upon this part of my subject, because the stratification of the glacier has been constantly questioned by the more recent investigators of glacial phenomena, and has indeed been set aside as an exploded theory. They consider the lines of stratification, the dirt-bands, and the seams of ice alternating with the more porous snow, as disconnected surface-phenomena, while I believe them all to be intimately connected together as primary essential features of the original mass.

There is another feature of glacial structure, intimately connected, by similarity of position and aspect, with the stratification, which has greatly perplexed the students of glacial phenomena. I allude to the so-called blue bands, or bands of infiltration, also designated as veined structure, ribboned or laminated structure, marginal structure, and longitudinal structure. The difficulty lies, I believe, in the fact that two very distinct structures, that of the stratification and the blue bands, are frequently blended together in certain parts of the glacier in such a manner as to seem identical, while elsewhere the one is prominent and the other subordinate, and vice versâ. According to their various opportunities of investigation, observers have either confounded the two, believing them to be the same, or some have overlooked the one and insisted upon the other as the prevailing feature, while that very feature has been absolutely denied again by others who have seen its fellow only, and taken that to be the only prominent and important fact in this peculiar structural character of the ice.

We have already seen how the stratification of the glacier arises, accompanied by layers of dust and other material foreign to the glacier, and how blue bands of compact ice may be formed parallel to the surface of these strata. We have also seen how the horizontality of these strata may be modified by pressure till they assume a position within the mass of the glacier, varying from a slightly oblique inclination to a vertical one. Now, while the position of the strata becomes thus altered under pressure, other changes take place in the constitution of the ice itself.

Before attempting to explain how these changes take place, let us consider the facts themselves. The mass of the glacial ice is traversed by thin bands of compact blue ice, these bands being very numerous along the margins of the glacier, where they constitute what Dr. Tyndall calls marginal structure, and still more crowded along the line upon which two glaciers unite, where he has called it longitudinal structure. In the latter case, where the extreme pressure resulting from the junction of two glaciers has rendered the strata nearly vertical, these blue bands follow their trend so closely that it is difficult to distinguish one from the other. It will be seen, on referring to the wood-cut on page 758, where the close, uniform, vertical lines represent the true veined structure, that at several points of that section the lines of stratification run so nearly parallel with them, that, were the former not drawn more strongly, they could not be easily distinguished from the latter. Along the margins, also, in consequence of the retarded motion, the blue bands and the lines of stratification run nearly parallel with each other, both following the sides of the trough in which they move.

Undoubtedly, in both these instances, we have two kinds of blue bands, namely: those formed primitively in a horizontal position, indicating seams of stratification, and those which have arisen subsequently in connection with the movement of the whole mass, which I have occasionally called bands of infiltration, as they appeared to me to be formed by the infiltration and freezing of water. The fact that these blue bands are most numerous where two glaciers are crowded together into a common bed naturally suggests pressure as their cause. And since the beautiful experiments of Dr. Tyndall have illustrated the internal liquefaction of ice by pressure, it becomes highly probable that his theory of the origin of these secondary blue bands is the true one. He suggests that layers of water may be formed in the glacier at right angles with the pressure, and pass into a state of solid ice upon the removal of that pressure, the pressure being of course relieved in proportion to the diminution in the body of the ice by compression. The number of blue bands diminishes as we recede from the source of the pressure,—few only being formed, usually at right angles with the surfaces of stratification, in the middle of a glacier, half-way between its sides. If they are caused by pressure, this diminution of their number toward the middle of the glacier would be inevitable, since the intensity of the pressure naturally fades as we recede from the motive power.

Dr. Tyndall also alludes to another structure of the same kind, which he calls transverse structure, where the blue bands extend in crescent-shaped curves, more or less arched, across the surface of the glacier. Where these do not coincide with the stratification, they are probably formed by vertical pressure in connection with the unequal movement of the mass.

With these facts before us, it seems to me plain that the primitive blue bands arise with the stratification of the snow in the very first formation of the glacier, while the secondary blue bands are formed subsequently, in consequence of the onward progress of the glacier and the pressure to which it is subjected. The secondary blue bands intersect the planes of stratification at every possible angle, and may therefore seem identical with the stratification in some places, while in others they cut it at right angles. It has been objected to my theory of glacial structure, that I have considered the so-called blue bands as a superficial feature when compared with the stratification. And in a certain sense this is true; since, if my views are correct, the glacier exists and is in full life and activity before the secondary blue bands arise in it, whereas the stratification is a feature of its embryo condition, already established in the accumulated snow before it begins its transformation into glacier-ice. In other words, the veined structure of the glacier is not a primary structural feature of its whole mass, but the result of various local influences acting upon the constitution of the ice: the marginal structure resulting from the resistance of the sides of the valley to the onward movement of the glacier, the longitudinal structure arising from the pressure caused by two glaciers uniting in one common bed, the transverse structure being produced by vertical pressure in consequence of the weight of the mass itself and the increased rate of motion at the centre.

In the névé fields, where the strata are still horizontal, the few blue bands observed are perpendicular to the strata of snow, and therefore also perpendicular to the blue seams of ice and the sheets of dust alternating with them. Upon the sides of the glacier they are more or less parallel to the slopes of the valley; along the line of junction of two glaciers they follow the vertical trend of the axis of the mass; while at intermediate positions they are more or less oblique. Along the outcropping edges of the strata, on the surface of the glacier, they follow more or less the dip of the strata themselves; that is to say, they are more or less parallel with the dirt-bands. In conclusion, I would recommend future investigators to examine the glaciers, with reference to the distribution of the blue bands, after heavy rains and during foggy days, when the surface is freed from the loose materials and decomposed fragments of ice resulting from the prolonged action of the sun.

The most important facts, then, to be considered with reference to the motion of the glacier are as follows. First that the rate of advance between the axis and the margins of a glacier differs in the ratio of about ten to one and even less; that is to say; when the centre is advancing at a rate of two hundred and fifty feet a year, the motion toward the sides may be gradually diminished to two hundred, one hundred and fifty, one hundred, fifty feet, and so on, till nearest the margin it becomes almost inappreciable. Secondly, the rate of motion is not the same throughout the length of the glacier, the advance being greatest about half-way down in the region of the névé, and diminishing in rapidity both above and below; thus the onward motion in the higher portion of a glacier may not exceed twenty to fifty feet a year, while it reaches its maximum of some two hundred and fifty feet annually in the névé region, and is retarded again toward the lower extremity, where it is reduced to about one-fourth of its maximum rate. Thirdly, the glacier moves at different rates throughout the thickness of its mass; toward the lower extremity of the glacier the bottom is retarded, and the surface portion moves faster, while in the upper region the bottom seems to advance more rapidly. I say seems, because upon this latter point there are no positive measurements, and it is only inferred from general appearances, while the former statement has been demonstrated by accurate experiments. Remembering the form of the troughs in which the glaciers arise, that they have their source in expansive, open fields of snow and névé, and that these immense accumulations move gradually down into ever narrowing channels, though at times widening again to contract anew, their surface wasting so little from external influences that they advance far below the line of perpetual snow without any sensible diminution in size, it is evident that an enormous pressure must have been brought to bear upon them before they could have been packed into the lower valleys through which they descend.

Physicists seem now to agree that pressure is the chief agency in the motion of glaciers. No doubt, all the facts point that way; but it now becomes a matter of philosophical interest to determine in what direction it acts most powerfully, and upon this point glacialists are by no means agreed. The latest conclusion seems to be, that the weight of the advancing mass is itself the efficient cause of the motion. But while this is probably true in the main, other elements tending to the same result, and generally overlooked by investigators, ought to be taken into consideration; and before leaving the subject, I would add a few words upon infiltration in this connection.

The weight of the glacier, as a whole, is about the same all the year round. If, therefore, pressure, resulting from that weight, be the all-controlling agency, its progress should be uniform daring the whole year, or even greatest in winter, which is by no means the case. By a series of experiments, I have ascertained that the onward movement, whatever be its annual average, is accelerated in spring and early summer. The average annual advance of the glacier being, at a given point, at the rate of about two hundred feet, its average summer advance, at the same point, will be at a rate of two hundred and fifty feet, while its average rate of movement in winter will be about one hundred and fifty feet. This can be accounted for only by the increased pressure due to the large accession of water trickling in spring and early summer into the interior through the net-work of capillary fissures pervading the whole mass. The unusually large infiltration of water at that season is owing to the melting of the winter snow. Careful experiments made on the glacier of the Aar, respecting the water thus accumulating on the surface, penetrating its mass, and finally discharged in part at its lower extremity, fully confirm this view. Here, then, is a powerful cause of pressure and consequent motion, quite distinct from the permanent weight of the mass itself, since it operates only at certain seasons of the year. In midwinter, when the infiltration is reduced to a minimum, the motion is least. The water thus introduced into the glacier acts, as we have seen above, in various ways: by its weight, by loosening the particles of snow through which it trickles, and by freezing and consequent expansion, at least within the limits and during the season at which the temperature of the glacier sinks below 32° Fahrenheit. The simple fact, that in the spring the glacier swells on an average to about five feet more than its usual level, shows how important this infiltration must be. I can therefore only wonder that other glacialists have given so little weight to this fact. It is admitted by all, that the waste of a glacier at its surface, in consequence of evaporation and melting, amounts to about nine or ten feet in a year. At this rate of diminution, a glacier, even one thousand feet in thickness, could not advance during a single century without being exhausted. The water supplied by infiltration no doubt repairs the loss to a great degree. Indeed, the lower part of the glacier must be chiefly maintained from this source, since the annual increase from the fresh accumulations of snow is felt only above the snow-line, below which the yearly snow melts away and disappears. In a complete theory of the glaciers, the effect of so great an accession of plastic material cannot be overlooked.
